The scan data is used to create a 3D design of the master using a variety of different Computer Assisted Design programs such as: Geomagic Design X, Shape 3DX, Rhino 5 3D & TSplines, Solidworks, Autodesk Inventor.
The output of the scanner is a .stl mesh file, a 3D file format that many CAD programs can import.
At this point of the process, the raw data of the scan can be obtain giving you the liberty to create your own CAD design.
Or we can built the surfaces for you and provide a CAD file ready for production, CNC cutting, 3D printing or for any other application.
CAD design from the scan recording of Dave Kalama 8'2' SUP.
Shape 3D X
The scan data is used to create a 3D design of the master using a variety of different Computer Assisted Design programs such as: Geomagic Design X, Shape 3DX, Rhino 5 3D & TSplines, Solidworks, Autodesk Inventor.
CAD design from the scan recording of Dave Kalama 8'2' SUP.
Shape 3D X
3D DESIGN - REVERSE ENGINEERING
CAD Design - Shape 3D X
Scan recording of a shaped blank
The Master file can be re-sized in any length, width & thickness while respecting all the characteristics of the design.
Any modification can be made.
Fin - Scan recording
CAD Design - Geomagic Design X
Handboard Design from scan data- Geomagic Design X / TSplines for Rhino
For Slyde Handboards
Paddle Blade Designs from scan data - Geomagic Design X / Solidworks
Skate board deck design from scan data- Geomagic /Design X
The accuracy analyzer shows the deviation between the scan data and the rebuilt surfaces (+ or - 0.1mm= 0.004" allowable tolerance)

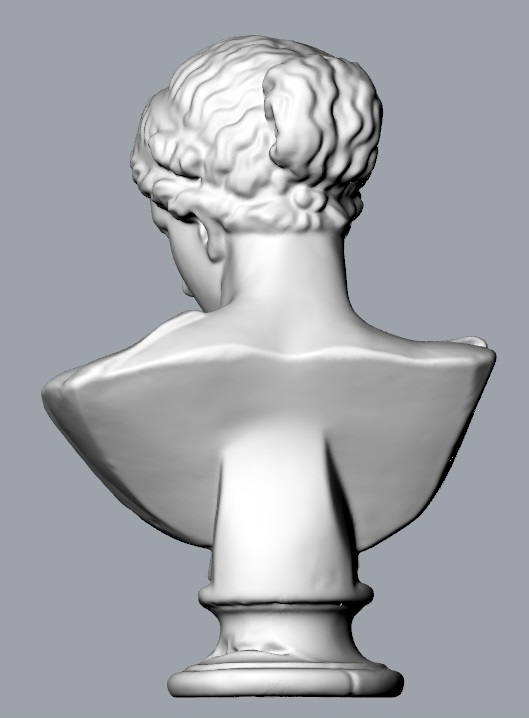

Statue scan data - Design X
